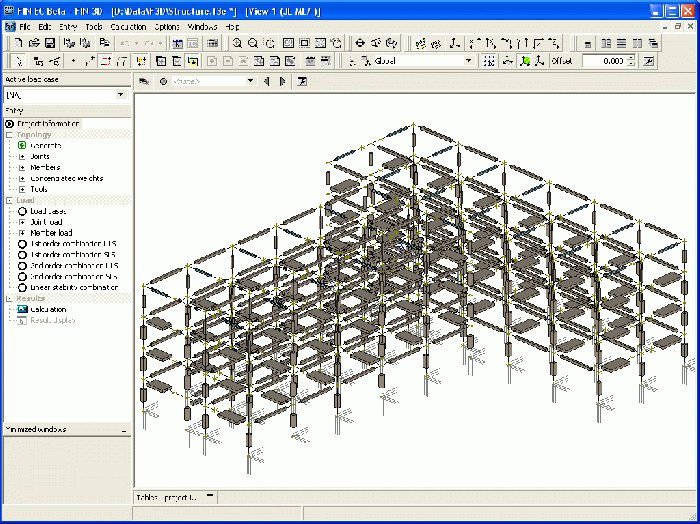

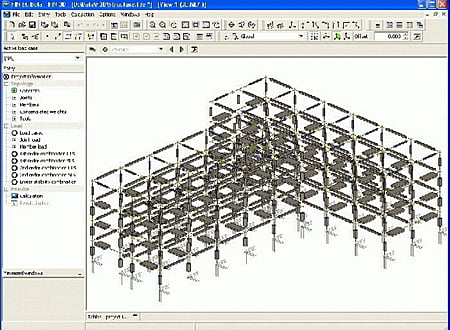

FIN EC screenshot
SOFTWARE :FIN EC
DEVELOPER :Fine Ltd
VERSION :2021
PLATFORM :Windows
FILE SIZE :1.37 MB
LICENSE :Demo
DOWNLOADS :UserDownloads:2338
Program Description

Program suite FIN EC is a great tool for design and static and dynamic analysis of 2D and 3D frame structures. FIN EC is popular among our customers mainly for its simple control. Individual applications included in the suite are closely connected to each other, however they can work separately. All programs of the suite support the new European standards - Eurocodes.

Structural and Stress Analysis

  • FIN 3D - Analysis of 3D beam and frame structures by FEM
  • FIN 2D - Analysis of 2D beam and frame structures by FEM

Design and check of steel structures

  • Steel Design of steel elements according to EC3 standard
  • Fire-resistance of steel structures according to EC3 standard
  • Steel joints Verification of connections of steel structures according to EC3 standard
  • Column base Analysis of column bases of steel structures according to EC3 standard

Calculations of cross-sectional characteristics

  • Section Calculation of cross-sectional characteristics
  • Sector Characteristics of thin-walled steel cross-sections

* FIN EC download link provides demo version of the software.
