Forces - Resultant of General Force System Software

CESDb > Geotechnical Engineering > Forces

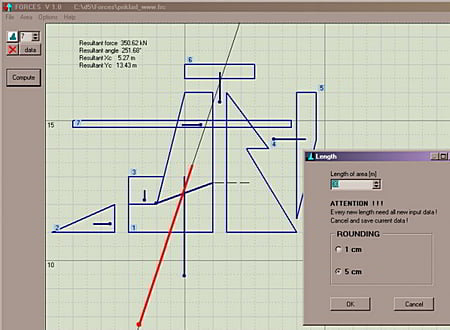

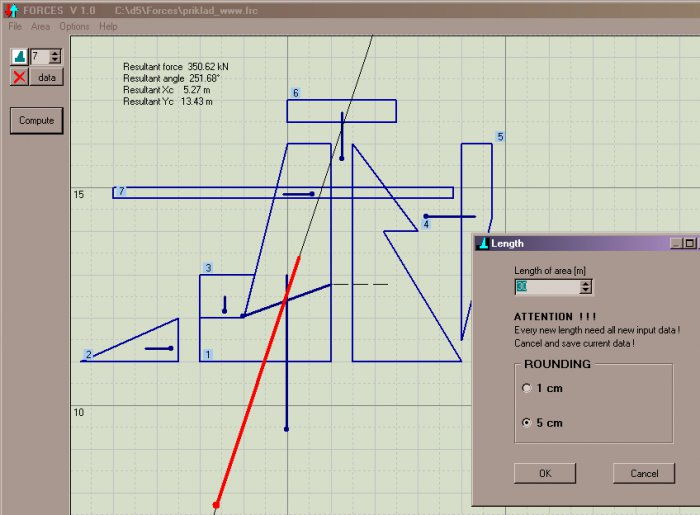

Forces screenshot

SOFTWARE :Forces

DEVELOPER :Vladimir Budinsky

VERSION :1.0

PLATFORM :Windows

FILE SIZE :0.79 MB

LICENSE :Freeware

DOWNLOADS :UserDownloads:801

Legacy Software Notice:

Please be advised that Forces is considered outdated or legacy, and it has reached the end of its support and update cycle. As a result, compatibility issues may arise, and its functionality cannot be guaranteed on modern computer systems.

Program Description

Resultant of general force system. The program is based on general principle of static equilibrium of forces in a plane. As long as the condition of static equilibrium is fulfilled, the system is stable, otherwise the system collapses. Equilibrium of forces in the plane is established when all participating forces form a closed diagram.

The program generates the resulting general forces acting from the surfaces of the specified load (load areas) and calculates their resultant. The load areas are general polygons representing e. g. earth pressure.

Extract the ZIP-file in a new folder and run the program. The program will not be installed. You can also create desktop shortcut to the program.

* Forces download link provides freeware version of the software.
