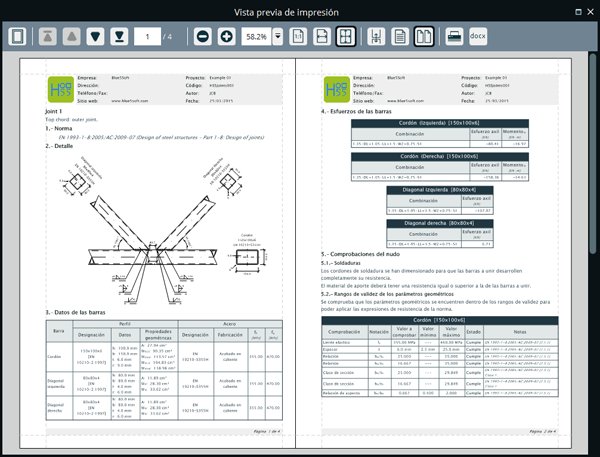

HSSJoints screenshot
SOFTWARE :HSSJoints
DEVELOPER :Blue5Soft
VERSION :5.4
PLATFORM :Windows
FILE SIZE :95.09 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:743
Program Description

Design of circular, square and rectangular hollow section joints. Contains a large number of Design Codes of different countries (Eurocode, AISC, etc.), thousands of profiles of worldwide profile manufacturers with their corresponding steels and type of fabrication. Generates detailed construction drawings and analysis reports for an excellent structural design project.

Design Codes:

  • BS EN 1993-1-8:2005/NA:2008-11/AC:2009
  • EN 1993-1-8:2005/AC:2009-07
  • SS EN 1993-1-8:2010/NA:2010-12
  • NF EN 1993-1-8:2005/NA:2007-07/AC:2009
  • DIN EN 1993-1-8:2005/AC:2009-12
  • UNI-EN 1993-1-8:2005/AC:2009
  • N.T.C. 2008 with criteria from EN 1993-1-8:2005/AC:2009-07
  • CTE DB-SE-A
  • Instrucción de Acero Estructural (EAE)
  • IS 800:2007 with criteria from EN 1993-1-8:2005/AC:2009-07
  • ANSI/AISC 360-10 (LRFD)
  • CAN/CSA S16-01 with criteria from EN 1993-1-8:2005/AC:2009-07
  • ABNT NBR 16239:2013
  • ABNT NBR 8800:2008 with criteria from EN 1993-1-8:2005/AC:2009-07
  • ABNT NBR 8800:2008 with criteria from ANSI/AISC 360-10 (LRFD)
  • CIRSOC 302-2005
  • NSR-10. Título F – Estructuras Metálicas

* HSSJoints download link provides trial version of the software.
