MITCalc is the mechanical, industrial and technical calculations package. This professionally multi-language prepared package includes solutions for gearings, belt and chain drives, bearings, springs, beams, shafts, bolt joints and many others. The calculations support both Imperial and Metric units and are processed particularly according to US, many European and Japanese standards.
It allows not only easy user-defined modifications and expansions but also mutual interconnection of the calculations, which is unique in the development of tailor-made complex calculations. MITCalc contains both design and check calculations of many common tasks, such as: spur and bevel gear, belt and chain gear, bearings, beam, pins, buckling, shaft, springs, bolt connection, welding, shaft connection, tolerance analysis, tolerances and many others. There are also many material, comparison, and decision tables, including a system for the administration of resolved tasks. The calculations support both Imperial and Metric units and are processed according to ANSI, ISO, DIN, BS, CSN and Japanese standards.

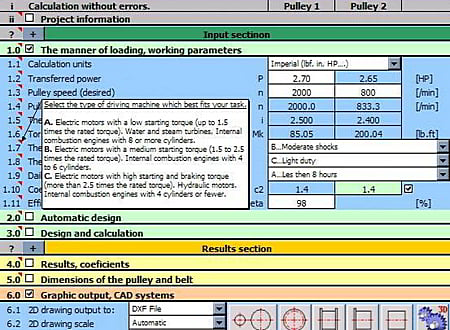

It is an open system designed in Microsoft Excel which allows not only easy user-defined modifications and user extensions without any programming skills, but also mutual interconnection of the calculations, which is unique in the development of tailor-made complex calculations. The sophisticated interaction with many 2D CAD systems (AutoCAD, AutoCAD LT, IntelliCAD, Ashlar Graphite, TurboCAD) allows the relevant drawing to be developed in a few seconds (3D CAD systems, SolidWorks, Solid Edge, Autodesk Inventor are supported in MITCalc 3D). OEM licensing of selected calculations or the complete product is available as well.
* MITCalc download link provides demo version of the software.
Straight beams with a constant cross-section
The application is designed for calculations of straight, maximum three times static indefinite beams with constant axis-symmetrical profiles.
MITCalc Bolted Connections is designed for a geometrical design and strength check of a prestressed bolt connection, loaded by static or cyclic loading resp. , acting both in the axis of the bolt and in the plane of the connected parts.
Calculation Slender Strut (Column) Buckling
MITCalc Buckling is designed to calculate the optimum cross-section and perform strength check of slender struts strained for buckling
Design and strength control of statically loaded welded connections
MITCalc Welded Connections is intended for the geometrical design and strength control of statically loaded welded connections of machine structures manufactured from carbon steels.
This calculation deals with the deflection, stress and variation of forces in the loaded flat plates.
