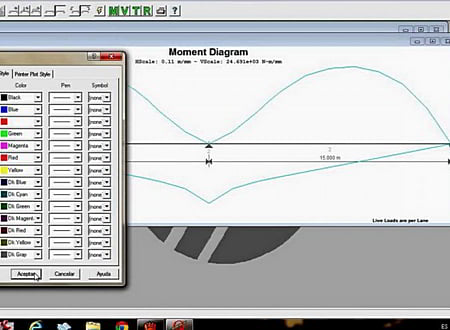

QConBridge screenshot
SOFTWARE :QConBridge
DEVELOPER :Washington State Department of Transportation
VERSION :1.3
PLATFORM :Windows
FILE SIZE :2.44 MB
LICENSE :Alternate Route Open Source License
DOWNLOADS :UserDownloads:1282
Legacy Software Notice:
Please be advised that QConBridge is considered outdated or legacy, and it has reached the end of its support and update cycle. As a result, compatibility issues may arise, and its functionality cannot be guaranteed on modern computer systems.
Program Description

QConBridge is a live load analysis program for continuous bridge frames. This software has been developed for the Alternate Route Project. QConBridge performs live load analysis for the AASHTO LRFD Bridge Design Specification HL93 live load model. The software accommodates standard and user defined DC and DW dead loads, and performs Strength I, Service I, Service II, Service III, and Fatigue Limit State combinations.

Features

  • Supports the AASHTO LRFD Bridge Design Specifications, First Edition
  • Use SI or English units interchangeably
  • Virtually any bridge section and geometry can be modeled
  • Integrated Section Properties Calculator to compute section and material properties, as well as live load distribution factors
  • The Bridge Contractor will help you build a bridge model to your specifications
  • Interactive model editing including Cut, Copy, and Paste features
  • Model non-prismatic spans
  • Model in-span hinges
  • Model cantilever spans
  • Build 2D bridge frame models, not just 1D beams
  • Supports DC and DW load cases with built-in and user defined loads
  • Supports HL93 notional live load model, including the optional dual tandem truck train
  • Supports pedestrian live load
  • Load combinations for Strength I, Service I, Service II, Service III, and Fatigue Limit States
  • Customizable shear and moment diagrams
  • User defined plotting styles
  • Detailed reporting
  • Context sensitive help

* QConBridge download link provides alternate route open source license version of the software.
